We offer stock for different aluminum fittings, 5086H32 & 6061 T6 Aluminum Pipe Fittings,aluminum elbow (Radius 90’s, Long Radius 45’s, Long Radius 180’s, Short Radius 90’s, Short Radius 180’s), Tees (Straight and Reducing) Tees and Crosses (Straight and Reducing), Aluminum Caps,Aluminum couplings(straight and reducing), aluminum flanges. We also offer custom manufactured fittings, flanges and pipes.

aluminum elbows

aluminium elbow

5086 H32
5086 is the preferred hull material for small aluminium boats or larger yachts. Its high strength and good corrosion resistance make it an excellent match for yachting.
5086 has a tendency to undergo stress corrosion cracking and is not used much in aircraft construction as a result.
5086 has been used in vehicle armor, notably in the M113 Armored Personnel Carrier and M2 Bradley Infantry fighting vehicle.

6061-T6
T6 temper 6061 has an ultimate tensile strength of at least 42,000 psi (300 MPa) and yield strength of at least 35,000 psi (241 MPa).  More typical values are 45,000 psi (310 MPa) and 40,000 psi (275 MPa), respectively. In thicknesses of 0.250 inch (6.35 mm) or less, it has elongation of 8% or more; in thicker sections, it has elongation of 10%. T651 temper has similar mechanical properties. The typical value for thermal conductivity for 6061-T6 at 80°C is around 152 W/m K. A material data sheet defines the fatigue limit under cyclic load as 14,000 psi (100 MPa) for 500,000,000 completely reversed cycles using a standard RR Moore test machine and specimen. Note that aluminum does not exhibit a well defined “knee” on its S-n graph, so there is some debate as to how many cycles equates to “infinite life”. Also note the actual value of fatigue limit for an application can be dramatically affected by the conventional de-rating factors of loading, gradient, and surface finish.

aluminum elbows

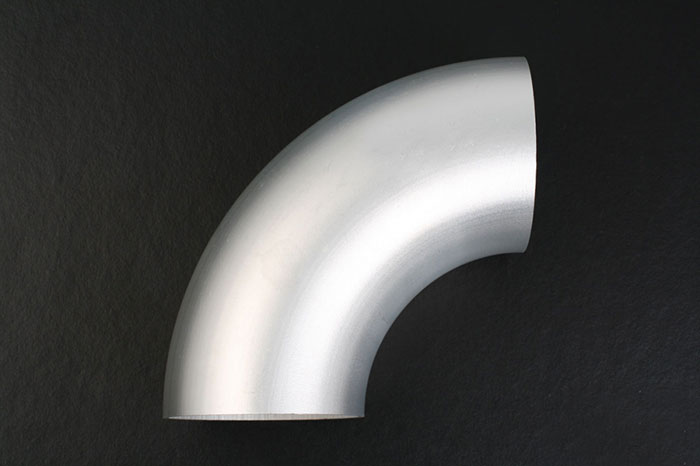

    aluminum 90 degree elbow


90 degree aluminum elbow
Nominal Dimension
DN

Bevel
D
center to end

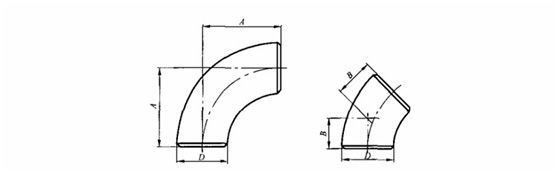

I Series Ⅱ Series 90 Degree Aluminum Elbow
A
45 Degree Aluminum Elbow
B
15 21.3 18 38 16
20 26.9 25 38 19
25 33.7 32 38 22
32 42.4 38 48 25
40 48.3 45 57 29
50 60.3 57 76 35
65 73.0 76 95 44
80 88.9 89 114 51
90 101.6   133 57
100 114.3 108 152 64
125 141.3 133 190 79
150 168.3 159 229 95
200 219.1 219 305 127
250 273.0 273 381 159
300 323.9 325 457 190
350 355.6 377 533 222
400 406.4 426 610 254
450   480 686 286
500 508 530 762 318
550 559   838 343
600 610 630 914 381
650 660   991 406
700 711 720 1067 438
750 762   1143 470
800 813 820 1219 502
