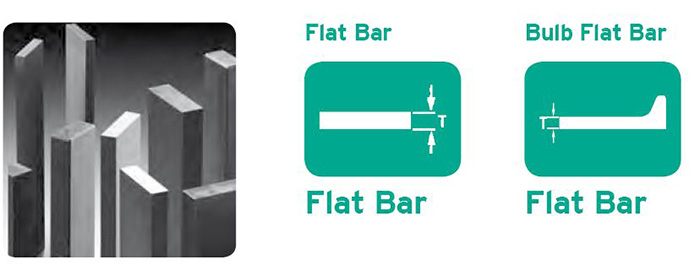

> Marine grade aluminum flat bar
Mechanical Properties of Marine Aluminum Flat Bar | |||||||
Alloy | Form | Thickness(mm) | Temper | Rm |
Rp0.2 (Mpa) |
A% Min | |
Min. | A₅₀ | A | |||||
5086 | Shapes, Bar, Tube | 3≤t≤50 | H112 | 240 | 95 | 10 | 12 |
5083 | Shapes, Bar, Tube Shapes, Bar, Tube | 3≤t≤50 3≤t≤50 |
H111 O and H112 |
270 270 | 110 125 | 10 10 | 12 12 |
5059 | Shapes, Bar, Tube | 3≤t≤50 | H112 | 330 | 200 | 10 | |
5383 | Shapes, Bar, Tub | 3≤t≤50 | O | 290 | 145 | 17 | 17 |
Shapes, Bar, Tub | 3≤t≤50 | H112 | 310 | 190 | 13 | ||
6061 | Shapes, Bar, Tube Profiles | 3≤t≤50 3≤t≤50 |
T5 or T6 T5 or T6 |
260 245 | 240 205 | 10 | 8 4 |
6005A | Shapes, Bar, Tube Profiles | 3≤t≤50 | T5 | 260 | 215 | 9 | 8 |
Shapes, Bar, Tube Profiles | 3≤t≤10 | T6 | 260 | 215 | 8 | 6 | |
10≤t≤50 | 250 | 200 | 8 | 6 | |||
6082 | Shapes, Bar, Tube Closed shapes | 3≤t≤50 3≤t≤50 |
T5 or T6 T5 or T6 |
310 290 | 260 240 | 10 | 8 5 |
Marine Aluminum Flat Bar Aluminum Alloys Composition | |||||||||||||
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | Others | Alu | |
Each | Toal | ||||||||||||
5083 | 0.40 | 0.40 | 0.1 | 0.4-1.0 | 4.0--4.9 | 0.05--0.25 | -- | 0.25 | 0.15 | -- | 0.05 | 0.15 | Remainder |
5383 | 0.25 | 0.25 | 0.20 | 0.7-1.0 | 4.0-5.2 | 0.25 | -- | 0.40 | 0.15 | -- | 0.05 | 0.15 | Remainder |
5086 | 0.40 | 0.50 | 0.1 | 0.2--0.7 | 3.5-4.5 | 0.05-0.25 | - | 0.25 | 0.15 | - | 0.05 | 0.15 | Remainder |
5059 | 0.45 | 0.50 | 0.25 | 0.6-1.2 | 5.0-6.0 | 0.25 | - | 0.40-0.9 | 0.20 | - | 0.05 | 0.15 | Remainder |
6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | 0.15 | - | 0.05 | 0.15 | Remainder |
6005A | 0.50-0.9 | 0.35 | 0.30 | 0.50 | 0.40-0.7 | 0.30 | - | 0.20 | 0.10 | - | 0.05 | 0.15 | Remainder |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.20 | 0.10 | - | 0.05 | 0.15 | Remainder |
Material Code | A (mm) | B (mm) | KG/m | Material Code | A (mm) | B (mm) | KG/m |
TP-474 | 1 | 18 | 0.049 | CAM_D001625 | 12.7 | 69.85 | 2.394 |
TP-488 | 1.2 | 30 | 0.097 | CAM_D000044 | 12.7 | 76.2 | 2.612 |
TP-793 | 1.5 | 25 | 0.101 | CAM_D002007 | 12.7 | 88.9 | 3.047 |
ALD_D000503 | 1.5 | 100 | 0.405 | CAM_D000045 | 12.7 | 101.6 | 3.482 |
AUS_D000269 | 1.6 | 20 | 0.086 | CAM_D001262 | 12.7 | 127 | 4.353 |
ALD_D001145 | 1.6 | 25 | 0.108 | CAM_D000963 | 12.7 | 152.4 | 5.224 |
CAM_A000017 | 2 | 10 | 0.108 | CAM_D002416 | 12.7 | 177.8 | 6.094 |
CAM_A000018 | 2 | 15 | 0.081 | CAM_D000669 | 12.7 | 203.2 | 6.965 |
CAM_A000019 | 2 | 20 | 0.108 | CAM_D005759 | 12.7 | 228.6 | 7.839 |
CAM_A000020 | 2 | 25 | 0.135 | CAM_D001263 | 12.7 | 254 | 8.706 |
CAM_A000034 | 2 | 30 | 0.162 | CAM_D005760 | 12.7 | 304.8 | 10.452 |
CAM_A000678 | 2 | 40 | 0.216 | CAM_A000120 | 15 | 15 | 0.608 |
CAM_A000778 | 2 | 50 | 0.27 | CAM_A000060 | 15 | 20 | 0.81 |
CAM_A000754 | 2 | 60 | 0.324 | CAM_A000923 | 15 | 25 | 1.013 |
TP-790 | 2.5 | 14 | 0.094 | CAM_A000124 | 15 | 30 | 1.215 |
TP-791 | 2.5 | 25 | 0.168 | CAM_A000431 | 15 | 35 | 1.418 |
TP-763 | 2.6 | 25 | 0.176 | CAM_A000061 | 15 | 40 | 1.62 |
CAM_A000817 | 3 | 10 | 0.081 | CAM_A000989 | 15 | 45 | 1.823 |
CAM_A000644 | 3 | 12 | 0.097 | CAM_A000096 | 15 | 50 | 2.025 |
CAM_A000428 | 3 | 15 | 0.122 | CAM_A000068 | 15 | 60 | 2.43 |
CAM-33 | 3 | 19 | 0.154 | CAM_A000500 | 15 | 70 | 2.835 |
CAM_A000299 | 3 | 20 | 0.162 | CAM_A000131 | 15 | 80 | 3.24 |
CAM_A000502 | 3 | 25 | 0.202 | CAM_A000750 | 15 | 90 | 3.645 |
CAM_A000039 | 3 | 30 | 0.243 | CAM_A000135 | 15 | 100 | 4.05 |
ALD_D001133 | 3 | 32 | 0.259 | CAM_A000138 | 15 | 120 | 4.86 |
CAM_A000301 | 3 | 40 | 0.324 | CAM_A000501 | 15 | 130 | 5.265 |
TP-872 | 3 | 43 | 0.348 | CAM_A000163 | 15 | 150 | 6.075 |
CAM_A000302 | 3 | 50 | 0.405 | CAM_A000164 | 15 | 200 | 8.1 |
CAM_A000142 | 3 | 60 | 0.486 | CAM_D004593 | 15.875 | 15.875 | 0.681 |
TP-53 | 3 | 64 | 0.518 | CAM_D001264 | 15.875 | 19.05 | 0.817 |
CAM_A000841 | 3 | 70 | 0.567 | CAM_D000659 | 15.875 | 25.4 | 1.088 |
CAM_A000303 | 3 | 80 | 0.648 | CAM_D000660 | 15.875 | 31.75 | 1.36 |
CAM_A000143 | 3 | 100 | 0.81 | CAM_D000661 | 15.875 | 38.1 | 1.631 |
CAM_A006313 | 3.05 | 25.4 | 0.209 | CAM_D001627 | 15.875 | 44.45 | 1.905 |
CAM_D000419 | 3.175 | 12.7 | 0.107 | CAM_D000662 | 15.875 | 50.8 | 2.177 |
CAM_D000029 | 3.175 | 19.05 | 0.164 | CAM_D000982 | 15.875 | 63.5 | 2.719 |
CAM_D000030 | 3.175 | 25.4 | 0.218 | CAM_D000663 | 15.875 | 76.2 | 3.265 |
CAM_D001407 | 3.175 | 31.75 | 0.271 | CAM_D000664 | 15.875 | 88.9 | 3.807 |
CAM_D000420 | 3.175 | 38.1 | 0.325 | CAM_D000665 | 15.875 | 101.6 | 4.353 |
CAM_D000031 | 3.175 | 50.8 | 0.435 | CAM_D001265 | 15.875 | 114.3 | 4.896 |
CAM_D000643 | 3.175 | 63.5 | 0.543 | CAM_D000204 | 15.875 | 127 | 5.441 |
CAM_D000707 | 3.175 | 76.2 | 0.653 | CAM_D001618 | 15.875 | 152.4 | 6.53 |
CAM_D000199 | 3.175 | 101.6 | 0.871 | CAM_D007085 | 15.875 | 203.2 | 8.71 |
CAM_D006563 | 3.18 | 15.88 | 0.136 | ALD_D000554 | 16 | 80 | 3.456 |
CAM_D005990 | 3.18 | 152.4 | 1.306 | CAM_D001043 | 16 | 84 | 3.629 |
ALD_D003455 | 3.2 | 40 | 0.34 | CAM-588 | 16 | 125 | 5.4 |
CAM_A000429 | 4 | 15 | 0.162 | CAM-179 | 16 | 200 | 8.492 |
CAM_A000144 | 4 | 20 | 0.216 | CAM_D005700 | 17.46 | 17.46 | 0.823 |
CAM_A000503 | 4 | 25 | 0.27 | CAM_A000914 | 18 | 18 | 0.875 |
CAM_A000510 | 4 | 30 | 0.324 | TP-1353-16 | 18 | 150 | 7.29 |
CAM_A000145 | 4 | 35 | 0.378 | CAM_D000938 | 19.05 | 19.05 | 0.978 |
CAM_A000146 | 4 | 40 | 0.432 | CAM_D000964 | 19.05 | 25.4 | 1.306 |
TP-308 | 4 | 40 | 0.432 | CAM_D000424 | 19.05 | 31.75 | 1.631 |
CAM_A000147 | 4 | 50 | 0.54 | CAM_D000551 | 19.05 | 31.75 | 1.631 |
CAM_A000614 | 4 | 60 | 0.648 | CAM_D000425 | 19.05 | 38.1 | 1.959 |
CAM_A000574 | 4 | 70 | 0.756 | CAM_D000671 | 19.05 | 44.45 | 2.284 |
CAM_A000646 | 4 | 80 | 0.864 | CAM_D000947 | 19.05 | 50.8 | 2.612 |
CAM_A000647 | 4 | 100 | 1.08 | CAM_A000875 | 19.05 | 57.15 | 2.94 |
ALD_D001134 | 4 | 160 | 1.728 | CAM_D000965 | 19.05 | 63.5 | 3.265 |
TP-779 | 4.5 | 125 | 1.507 | CAM_D001629 | 19.05 | 76.2 | 3.918 |
CAM_D001621 | 4.763 | 12.7 | 0.164 | CAM_D000711 | 19.05 | 88.9 | 4.571 |
CAM_D000196 | 4.763 | 19.05 | 0.245 | CAM_D000046 | 19.05 | 101.6 | 5.224 |
CAM_D003006 | 4.763 | 31.75 | 0.408 | CAM_D006294 | 19.05 | 114.3 | 5.879 |
CAM_D000648 | 4.763 | 76.2 | 0.978 | CAM_D001630 | 19.05 | 127 | 6.53 |
CAM_D000649 | 4.763 | 101.6 | 1.306 | CAM_D000672 | 19.05 | 152.4 | 7.835 |
CAM_D000962 | 4.775 | 25.4 | 0.328 | CAM_D001631 | 19.05 | 203.2 | 10.447 |
CAM_D000032 | 4.775 | 38.1 | 0.49 | CAM_D000712 | 19.05 | 254 | 13.059 |
CAM_D000033 | 4.775 | 50.8 | 0.654 | CAM_D005591 | 19.05 | 304.8 | 15.677 |
CAM_D000421 | 4.775 | 63.5 | 0.818 | CAM_A000121 | 20 | 20 | 1.08 |
CAM_D001305 | 5 | 8 | 0.108 | CAM_A000652 | 20 | 25 | 1.35 |
TP-1505 | 5 | 10 | 0.135 | CAM_A000125 | 20 | 30 | 1.62 |
CAM_A000149 | 5 | 15 | 0.202 | CAM_A000265 | 20 | 35 | 1.89 |
CAM_A000038 | 5 | 20 | 0.27 | CAM_A000062 | 20 | 40 | 2.16 |
TP-274 | 5 | 20 | 0.27 | CAM_A000126 | 20 | 45 | 2.43 |
CAM_A000304 | 5 | 25 | 0.338 | CAM_A000064 | 20 | 50 | 2.7 |
CAM_A000092 | 5 | 30 | 0.405 | CAM_A000069 | 20 | 60 | 3.24 |
CAM_A000498 | 5 | 35 | 0.473 | CAM_A000129 | 20 | 70 | 3.78 |
CAM_A000040 | 5 | 40 | 0.54 | CAM_A000097 | 20 | 80 | 4.32 |
CAM_A000305 | 5 | 45 | 0.607 | CAM_A000978 | 20 | 90 | 4.86 |
CAM_A000266 | 5 | 50 | 0.675 | CAM_A000136 | 20 | 100 | 5.4 |
TP-256 | 5 | 50 | 0.674 | CAM_A000315 | 20 | 120 | 6.48 |
CAM_A000067 | 5 | 60 | 0.81 | TP-50 | 20 | 120 | 6.477 |
CAM_A000598 | 5 | 70 | 0.945 | CAM_A000141 | 20 | 150 | 8.1 |
CAM_A000072 | 5 | 80 | 1.08 | CAM_A000942 | 20 | 160 | 8.64 |
CAM_A000575 | 5 | 90 | 1.215 | TP-51 | 20 | 180 | 9.717 |
CAM_A000150 | 5 | 100 | 1.35 | CAM_A000099 | 20 | 200 | 10.8 |
CAM_A000513 | 5 | 120 | 1.62 | TP-572 | 20 | 200 | 10.8 |
CAM_A000512 | 5 | 150 | 2.025 | CAM_D005701 | 20.64 | 20.64 | 1.15 |
CAM_A000576 | 5 | 200 | 2.7 | CAM_D002413 | 22.225 | 22.225 | 1.333 |
CAM_A000427 | 6 | 10 | 0.162 | CAM_D001632 | 22.225 | 25.4 | 1.524 |
CAM_A000917 | 6 | 12 | 0.194 | CAM_D001633 | 22.225 | 38.1 | 2.284 |
CAM_A000430 | 6 | 15 | 0.243 | CAM_D000713 | 22.225 | 50.8 | 3.047 |
CAM_A000151 | 6 | 20 | 0.324 | CAM_A000122 | 25 | 25 | 1.688 |
CAM-525 | 6 | 22 | 0.356 | CAM_A000466 | 25 | 30 | 2.025 |
CAM_A000306 | 6 | 25 | 0.405 | CAM_A000961 | 25 | 35 | 2.363 |
CAM_A000152 | 6 | 30 | 0.486 | CAM_A000734 | 25 | 40 | 2.7 |
TP-48 | 6 | 30 | 0.486 | CAM_A000148 | 25 | 50 | 3.375 |
CAM_A000307 | 6 | 35 | 0.567 | CAM_A000070 | 25 | 60 | 4.05 |
CAM_A000308 | 6 | 40 | 0.648 | CAM_A000467 | 25 | 70 | 4.725 |
CAM_A000309 | 6 | 50 | 0.81 | CAM_A000132 | 25 | 80 | 5.4 |
CAM_A000153 | 6 | 60 | 0.972 | CAM_A000468 | 25 | 100 | 6.75 |
TP-297 | 6 | 60 | 0.972 | CAM_A000435 | 25 | 120 | 8.1 |
CAM_A000887 | 6 | 70 | 1.134 | TP-1353-17 | 25 | 150 | 10.125 |
ALD_D002975 | 6 | 75 | 1.215 | TP-620 | 25 | 155 | 10.463 |
CAM_A000310 | 6 | 80 | 1.296 | CAM_D000213 | 25.4 | 25.4 | 1.741 |
TP-287 | 6 | 80 | 1.296 | CAM_D000673 | 25.4 | 31.75 | 2.177 |
CAM_A000514 | 6 | 100 | 1.62 | CAM_D000426 | 25.4 | 38.1 | 2.612 |
TP-1353-14 | 6 | 150 | 2.43 | CAM_D000674 | 25.4 | 38.1 | 2.612 |
ALD_D001129 | 6 | 160 | 2.592 | CAM_D002148 | 25.4 | 44.45 | 3.047 |
CAM_D006722 | 6.35 | 6.35 | 0.109 | CAM_D000205 | 25.4 | 50.8 | 3.482 |
CAM_D000650 | 6.35 | 12.7 | 0.218 | CAM_D000715 | 25.4 | 57.15 | 3.918 |
CAM_D000547 | 6.35 | 15.875 | 0.271 | CAM_D000428 | 25.4 | 63.5 | 4.353 |
CAM_D000983 | 6.35 | 19.05 | 0.325 | CAM_A000876 | 25.4 | 69.85 | 4.79 |
CAM_D000034 | 6.35 | 25.4 | 0.435 | CAM_D000677 | 25.4 | 76.2 | 5.224 |
CAM_D002006 | 6.35 | 31.75 | 0.544 | CAM_D000206 | 25.4 | 88.9 | 6.094 |
CAM_D000944 | 6.35 | 38.1 | 0.653 | CAM_D000966 | 25.4 | 101.6 | 6.965 |
CAM_D006296 | 6.35 | 41.275 | 0.708 | CAM_D001206 | 25.4 | 107.95 | 7.4 |
CAM_D002414 | 6.35 | 44.45 | 0.76 | CAM_D004730 | 25.4 | 114.3 | 7.835 |
CAM_D000035 | 6.35 | 50.8 | 0.871 | CAM_D000679 | 25.4 | 127 | 8.706 |
CAM_D000197 | 6.35 | 50.8 | 0.871 | CAM_D001205 | 25.4 | 139.7 | 9.577 |
CAM_D002415 | 6.35 | 57.15 | 0.978 | CAM_D000207 | 25.4 | 152.4 | 10.447 |
CAM_D000548 | 6.35 | 63.5 | 1.088 | CAM_A001154 | 25.4 | 177.8 | 12.194 |
CAM_D000036 | 6.35 | 76.2 | 1.306 | CAM_D000680 | 25.4 | 203.2 | 13.93 |
CAM_D001622 | 6.35 | 88.9 | 1.524 | CAM_D001635 | 25.4 | 254 | 17.419 |
CAM_D000198 | 6.35 | 101.6 | 1.741 | CAM_D002939 | 25.4 | 304.8 | 20.903 |
CAM_D000656 | 6.35 | 127 | 2.177 | CAM-743 | 27 | 27 | 1.968 |
CAM_D000037 | 6.35 | 152.4 | 2.612 | ZWDX-118 | 29 | 372 | 29.107 |
CAM_D000979 | 6.35 | 203.2 | 3.482 | ZWDX-119 | 29.2 | 288 | 22.769 |
CAM_D005756 | 6.35 | 254 | 4.355 | CAM_A000123 | 30 | 30 | 2.43 |
CAM_D005757 | 6.35 | 304.8 | 5.226 | CAM_A000063 | 30 | 40 | 3.24 |
CAM-274 | 7 | 18.2 | 0.343 | CAM_A000065 | 30 | 50 | 4.05 |
W23.1.0-4-5 | 7 | 149 | 2.816 | CAM_A000071 | 30 | 60 | 4.86 |
TP-923 | 7.1 | 18 | 0.345 | CAM_A000819 | 30 | 70 | 5.67 |
CAM_A001031 | 7.62 | 12.7 | 0.261 | CAM_A000413 | 30 | 80 | 6.48 |
CAM-490 | 7.8 | 19.8 | 0.407 | CAM_A000791 | 30 | 100 | 8.1 |
CAM_D001258 | 7.9375 | 19.05 | 0.408 | CAM_A000140 | 30 | 120 | 9.72 |
CAM_D004729 | 7.9375 | 25.4 | 0.544 | CAM_A000679 | 30 | 120 | 9.72 |
CAM_D001259 | 7.9375 | 101.6 | 2.177 | CAM_A001112 | 30 | 150 | 12.15 |
CAM_D005758 | 7.94 | 38.1 | 0.817 | CAM-76 | 30 | 555 | 44.946 |
CAM_D006131 | 7.94 | 50.8 | 1.089 | CAM_D000214 | 31.75 | 31.75 | 2.719 |
CAM_D006132 | 7.94 | 152.4 | 3.266 | CAM_D000681 | 31.75 | 38.1 | 3.265 |
CAM_D005761 | 7.95 | 7.95 | 0.171 | CAM_A001030 | 31.75 | 44.45 | 3.81 |
CAM_A000977 | 8 | 8 | 0.173 | CAM_D000208 | 31.75 | 50.8 | 4.353 |
CAM_A000156 | 8 | 15 | 0.324 | CAM_D001267 | 31.75 | 57.15 | 4.896 |
CAM_A000059 | 8 | 20 | 0.432 | CAM_D001268 | 31.75 | 63.5 | 5.441 |
CAM_A000725 | 8 | 25 | 0.54 | CAM_D000683 | 31.75 | 76.2 | 6.53 |
CAM_A000497 | 8 | 30 | 0.648 | CAM_D001269 | 31.75 | 88.9 | 7.618 |
CAM_A000732 | 8 | 35 | 0.756 | CAM_D000684 | 31.75 | 101.6 | 8.706 |
CAM_A000094 | 8 | 40 | 0.864 | CAM_D002417 | 31.75 | 114.3 | 9.794 |
CAM_A000818 | 8 | 45 | 0.972 | CAM_D000554 | 31.75 | 127 | 10.883 |
CAM_A000155 | 8 | 50 | 1.08 | CAM_D001270 | 31.75 | 152.4 | 13.059 |
CAM_A000311 | 8 | 60 | 1.296 | CAM_D000716 | 31.75 | 203.2 | 17.412 |
CAM_A000412 | 8 | 70 | 1.512 | CAM_D000717 | 31.75 | 254 | 21.774 |
CAM_A000042 | 8 | 80 | 1.728 | CAM-1079 | 32.6 | 18.8 | 1.652 |
TP-255 | 8 | 80 | 1.727 | CAM_A000426 | 35 | 35 | 3.308 |
CAM_A000312 | 8 | 100 | 2.16 | CAM-316 | 35 | 400 | 37.8 |
CAM_A000161 | 8 | 120 | 2.592 | CAM_D000215 | 38.1 | 38.1 | 3.918 |
CAM_A000596 | 8 | 130 | 2.808 | CAM_A000874 | 38.1 | 44.45 | 4.573 |
CAM_A000314 | 8 | 150 | 3.24 | CAM_D001204 | 38.1 | 50.8 | 5.224 |
CAM_A001054 | 8 | 160 | 3.456 | CAM_D000209 | 38.1 | 63.5 | 6.53 |
CAM_A000317 | 8 | 200 | 4.32 | CAM_D000212 | 38.1 | 76.2 | 7.835 |
CAM_D001315 | 9.525 | 9.525 | 0.245 | CAM_D001636 | 38.1 | 88.9 | 9.141 |
CAM_D002664 | 9.525 | 12.7 | 0.325 | CAM_D000686 | 38.1 | 101.6 | 10.447 |
CAM_D001623 | 9.525 | 15.875 | 0.408 | CAM_D001272 | 38.1 | 127 | 13.059 |
CAM_D000980 | 9.525 | 19.05 | 0.489 | CAM_D002406 | 38.1 | 152.4 | 15.671 |
CAM_A000873 | 9.525 | 22.225 | 0.572 | CAM_D003007 | 38.1 | 177.8 | 18.283 |
CAM_D000422 | 9.525 | 25.4 | 0.653 | CAM_D002940 | 38.1 | 203.2 | 20.894 |
CAM_D002146 | 9.525 | 31.75 | 0.817 | CAM_D006820 | 38.1 | 304.8 | 31.355 |
CAM_D000038 | 9.525 | 38.1 | 0.978 | CAM-1078 | 39.6 | 24.3 | 2.596 |
CAM_D000981 | 9.525 | 44.45 | 1.142 | CAM-744 | 40 | 27 | 2.916 |
CAM_D000039 | 9.525 | 50.8 | 1.306 | CAM_A000056 | 40 | 40 | 4.32 |
CAM_D000200 | 9.525 | 50.8 | 1.306 | CAM_A000066 | 40 | 50 | 5.4 |
CAM_D000710 | 9.525 | 57.15 | 1.47 | CAM_A000127 | 40 | 60 | 6.48 |
CAM_D000201 | 9.525 | 63.5 | 1.631 | CAM_A000653 | 40 | 70 | 7.56 |
CAM_D000658 | 9.525 | 76.2 | 1.959 | CAM_A000133 | 40 | 80 | 8.64 |
CAM_D001201 | 9.525 | 88.9 | 2.285 | CAM_A000434 | 40 | 100 | 10.8 |
CAM_D001400 | 9.525 | 101.6 | 2.612 | CAM_A001060 | 42 | 82 | 9.299 |
CAM_D002147 | 9.525 | 114.3 | 2.938 | CAM_D000939 | 44.45 | 44.45 | 5.335 |
CAM_D000202 | 9.525 | 127 | 3.265 | CAM_D001637 | 44.45 | 50.8 | 6.094 |
CAM_D000040 | 9.525 | 152.4 | 3.918 | CAM_D002418 | 44.45 | 63.5 | 7.618 |
CAM_D000203 | 9.525 | 203.2 | 5.224 | CAM_D001273 | 44.45 | 76.2 | 9.141 |
CAM_D000984 | 9.525 | 203.2 | 5.224 | CAM_D001274 | 44.45 | 101.6 | 12.188 |
CAM_D005762 | 9.525 | 254 | 6.532 | CAM_D000718 | 44.45 | 127 | 15.236 |
CAM_D004002 | 9.525 | 304.8 | 7.835 | CAM_D000719 | 44.45 | 152.4 | 18.283 |
CAM-1371 | 9.7 | 34 | 0.89 | CAM_D007005 | 44.45 | 203.2 | 24.387 |
CAM_A000529 | 10 | 10 | 0.27 | CAM_A000810 | 45 | 45 | 5.468 |
CAM_A000157 | 10 | 15 | 0.405 | CAM_A000037 | 50 | 50 | 6.75 |
CAM_A000313 | 10 | 20 | 0.54 | CAM_A000055 | 50 | 50 | 6.75 |
CAM_A000264 | 10 | 25 | 0.675 | CAM_A000134 | 50 | 80 | 10.8 |
CAM_A000093 | 10 | 30 | 0.81 | CAM_A000073 | 50 | 100 | 13.5 |
ALD_D001132 | 10 | 32 | 0.864 | CAM_A001402 | 50 | 120 | 16.2 |
CAM_A000888 | 10 | 35 | 0.945 | CAM-1077 | 50.6 | 24.3 | 3.318 |
CAM_A000095 | 10 | 40 | 1.08 | CAM_D000940 | 50.8 | 50.8 | 6.968 |
CAM_A000041 | 10 | 50 | 1.35 | CAM_D000210 | 50.8 | 63.5 | 8.706 |
CAM_A000158 | 10 | 60 | 1.62 | CAM_D000687 | 50.8 | 76.2 | 10.447 |
CAM_A000128 | 10 | 70 | 1.89 | CAM_D000720 | 50.8 | 88.9 | 12.188 |
CAM_A000130 | 10 | 80 | 2.16 | CAM_D000967 | 50.8 | 101.6 | 13.93 |
CAM_A000139 | 10 | 90 | 2.43 | CAM_D000721 | 50.8 | 127 | 17.419 |
CAM_A000098 | 10 | 100 | 2.7 | CAM_D002408 | 50.8 | 152.4 | 20.903 |
TP-254 | 10 | 100 | 2.699 | CAM_D007013 | 50.8 | 177.8 | 24.387 |
CAM_A000137 | 10 | 120 | 3.24 | CAM_D007284 | 50.8 | 203.2 | 27.871 |
CAM_A000842 | 10 | 130 | 3.51 | ALD_D000346 | 50.8 | 250 | 34.29 |
CAM_A000436 | 10 | 140 | 3.78 | CAM_D007014 | 50.8 | 254 | 34.839 |
CAM_A000159 | 10 | 150 | 4.05 | CAM_A000811 | 55 | 55 | 8.168 |
CAM_A000957 | 10 | 160 | 4.32 | CAM_D000941 | 57.15 | 57.15 | 8.819 |
TP-1488 | 10 | 178.8 | CAM_D001638 | 57.15 | 76.2 | 11.758 | |
CAM_A000597 | 10 | 180 | 4.86 | CAM_D007285 | 57.15 | 101.6 | 15.677 |
CAM-805 | 10 | 189.8 | 5.125 | CAM_A000404 | 60 | 60 | 9.72 |
CAM_A000160 | 10 | 200 | 5.4 | CAM_A001111 | 60 | 80 | 12.96 |
CAM_A000793 | 10 | 250 | 6.75 | CAM_D000216 | 63.5 | 63.5 | 10.887 |
CAM_A000316 | 10 | 300 | 8.1 | CAM_D000708 | 63.5 | 76.2 | 13.064 |
ZWDX-121 | 10 | 470 | 12.69 | CAM_D001875 | 63.5 | 88.9 | 15.242 |
ZWDX-128 | 10 | 570 | 15.39 | CAM_D002666 | 63.5 | 101.6 | 17.412 |
CAM_A000776 | 12 | 12 | 0.389 | CAM_D004731 | 63.5 | 114.3 | 19.597 |
CAM_A000411 | 12 | 20 | 0.648 | CAM_D000709 | 63.5 | 127 | 21.774 |
CAM_A000726 | 12 | 25 | 0.81 | CAM_D007015 | 63.5 | 152.4 | 26.129 |
CAM_A000724 | 12 | 30 | 0.972 | CAM_A000812 | 65 | 65 | 11.408 |
CAM_A000432 | 12 | 40 | 1.296 | CAM_D000942 | 69.85 | 69.85 | 13.173 |
CAM_A000162 | 12 | 50 | 1.62 | CAM_A000058 | 70 | 70 | 13.23 |
CAM_A000511 | 12 | 60 | 1.944 | CAM_A000971 | 75 | 100 | 20.25 |
CAM_A000792 | 12 | 70 | 2.268 | CAM_D000943 | 76.2 | 76.2 | 15.677 |
CAM_A000154 | 12 | 80 | 2.592 | CAM_A000877 | 76.2 | 82.55 | 16.984 |
CAM_A000433 | 12 | 100 | 3.24 | CAM_D002941 | 76.2 | 88.9 | 18.29 |
CAM_A000733 | 12 | 120 | 3.888 | CAM_D002344 | 76.2 | 101.6 | 20.903 |
CAM_A000765 | 12 | 150 | 4.86 | CAM_D006994 | 76.2 | 127 | 26.129 |
CAM_A000749 | 12 | 200 | 6.48 | CAM_D006993 | 76.2 | 152.4 | 31.355 |
CAM_D006564 | 12.7 | 7.94 | 0.272 | CAM_D007016 | 76.2 | 203.2 | 41.806 |
CAM_D000937 | 12.7 | 12.7 | 0.435 | CAM_A000808 | 80 | 80 | 17.28 |
CAM_D001624 | 12.7 | 15.875 | 0.543 | CAM_A001046 | 82 | 100 | 22.14 |
CAM_D000985 | 12.7 | 19.05 | 0.653 | CAM_A000813 | 85 | 85 | 19.508 |
CAM_D000946 | 12.7 | 25.4 | 0.871 | CAM_D001620 | 88.9 | 88.9 | 21.33 |
CAM_D001202 | 12.7 | 31.75 | 1.088 | CAM_D006821 | 88.9 | 101.6 | 24.387 |
CAM_D000041 | 12.7 | 38.1 | 1.306 | CAM_A000809 | 90 | 90 | 21.87 |
CAM_D001260 | 12.7 | 44.45 | 1.524 | CAM_D007280 | 95.25 | 95.25 | 24.496 |
CAM_D000042 | 12.7 | 50.8 | 1.741 | CAM_A001109 | 100 | 100 | 27 |
CAM_D001261 | 12.7 | 57.15 | 1.959 | CAM_D007020 | 101.6 | 101.6 | 27.871 |
CAM_D000043 | 12.7 | 63.5 | 2.177 | CAM-674 | 99 | 110 | 29.4 |
CAM_A001083 | 130 | 130 | 45.63 | CAM_A001110 | 110 | 110 | 32.67 |
CAM-673 | 110 | 226 | 67.122 | CAM_A001403 | 120 | 120 | 38.88 |
